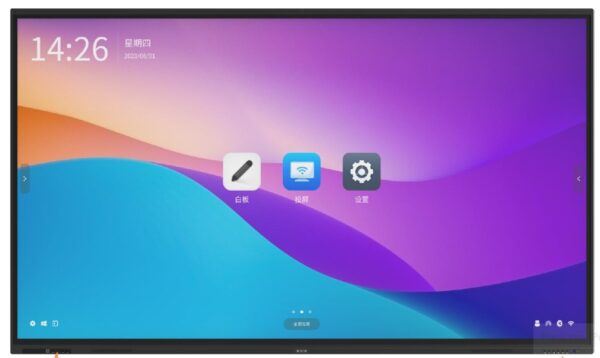

ORYX ORIFP-110 110″ 4K Interactive Flat Panel

Description

Display Parameters
Size:  110 inches
Response time:  8ms
Image Aspect Ratio:  16:9
Resolution ratio:  3840(H)×2160(V)
Refresh rate:  60Hz
Contrast ratio:  1200:1
Luminance:  410cd/m2
Viewing angle:  178°(H/V)
NTSC:  72%
Backlight type:  Direct LED

Audio and Video Parameters
Loudspeaker
Voice:  2.1
Power:  2×15W+15W

Camera & Microphone
Camera
Position:  Upper central
Pixel:  48MP

Microphone
Quantity:  8-array

Touch System
Recognition:  Principle Infrared recognition
Support system:  Windows10/Windows8/Windows7/Linux/Mac/Android
Touch point:  count 20-point touch
Response time:  ≤6ms
Surface hardness of writing
screen:  7H
Touch surface material:  Anti-glare tempered glass

Android System
System version Android:  13.0
CPU:  ARM Cortex A76x4+ARM Cortex A55x4
GPU:  Mali-G610
RAM:  8GB
ROM:  64GB

Built-in PC Module
OPS
JAE interface:  Compatible with Intel’s 80PIN JAE interface standard
CPU:  Domestic production / Intel Core i5/i7
Internal storage:  DDR 8/16G
Hard drive:  SSD 256G/512G
Interface:  USB 3.0,USB 2.0,HDMI,LAN,LINE OUT,MIC

Wireless Parameters
Wi-Fi/Bluetooth
Wi-Fi edition:  1X 802.11 ax
PDA:  5.2

I/O Interface
Front-end interface
USB 3.0:  2
USB Type C(DP1.2+touch
USB+15W power supply):  1
HDMI In:  1
Touch Out:  1

Side/rear interface
HDMI in:  2
HDMI out:  1
USB3.0:  1
USB2.0:  1
USB C:  1
USB C out:  1
DP in:  1
TOUCH out:  2
VGA/Audio in:  1
AUDIO in:  1
RS-232:  1
S/PDIF:  1
Earphone:  1
LAN:  2

Power Supply Parameters
Power input:  AC 100-240 V 50 / 60Hz
Standby power consumption:
≤0.5W

Dimensions
Machine dimensions (length
× width × thickness):  2500.8*1477.5*108.7mm
Packing measurement:  2662×1625.5x298mm
Net weight:  115Kg
Rough weight:  149Kg

Random Appendices
Power line:  1 twig
Touch Pen:  2 Branch
Telecontroller:  1 individual
